How We Fixed A Hot Room In Houston Using A Space-Saving Duct Transition

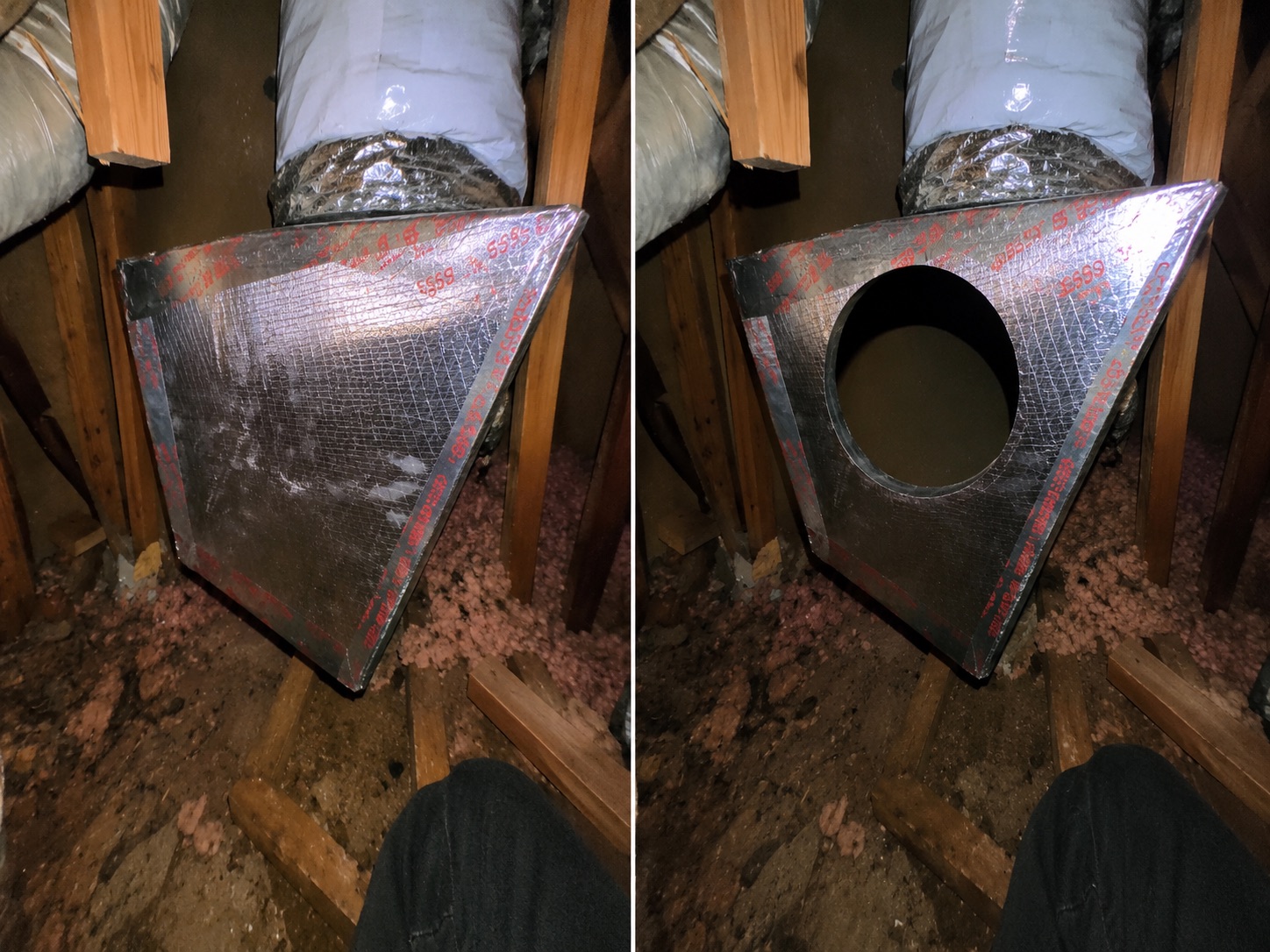

Some rooms do not receive enough conditioned air even when the HVAC system is running correctly. In this project, the attic space was too tight to run a completely new duct from the main plenum, so we used a triangular branch transition to add another supply vent into the existing run.
Project problem
The room needed more conditioned airflow.
The goal was to improve airflow to the added room while working within limited attic space. Instead of forcing a full new duct run from the main plenum, we used the existing duct path and created a cleaner branch connection.
Step 1
Dry fit everything first.
Before cutting anything, the triangular transition and duct connections were dry fitted to make sure everything lined up correctly. This helps prevent mistakes and confirms there is enough clearance inside the attic before modifying the ductwork.
Step 2
Mark the opening.
Once the transition location was confirmed, the opening was marked carefully before cutting. Marking the opening first helps keep the cut clean and allows the branch connection to fit properly once installed.

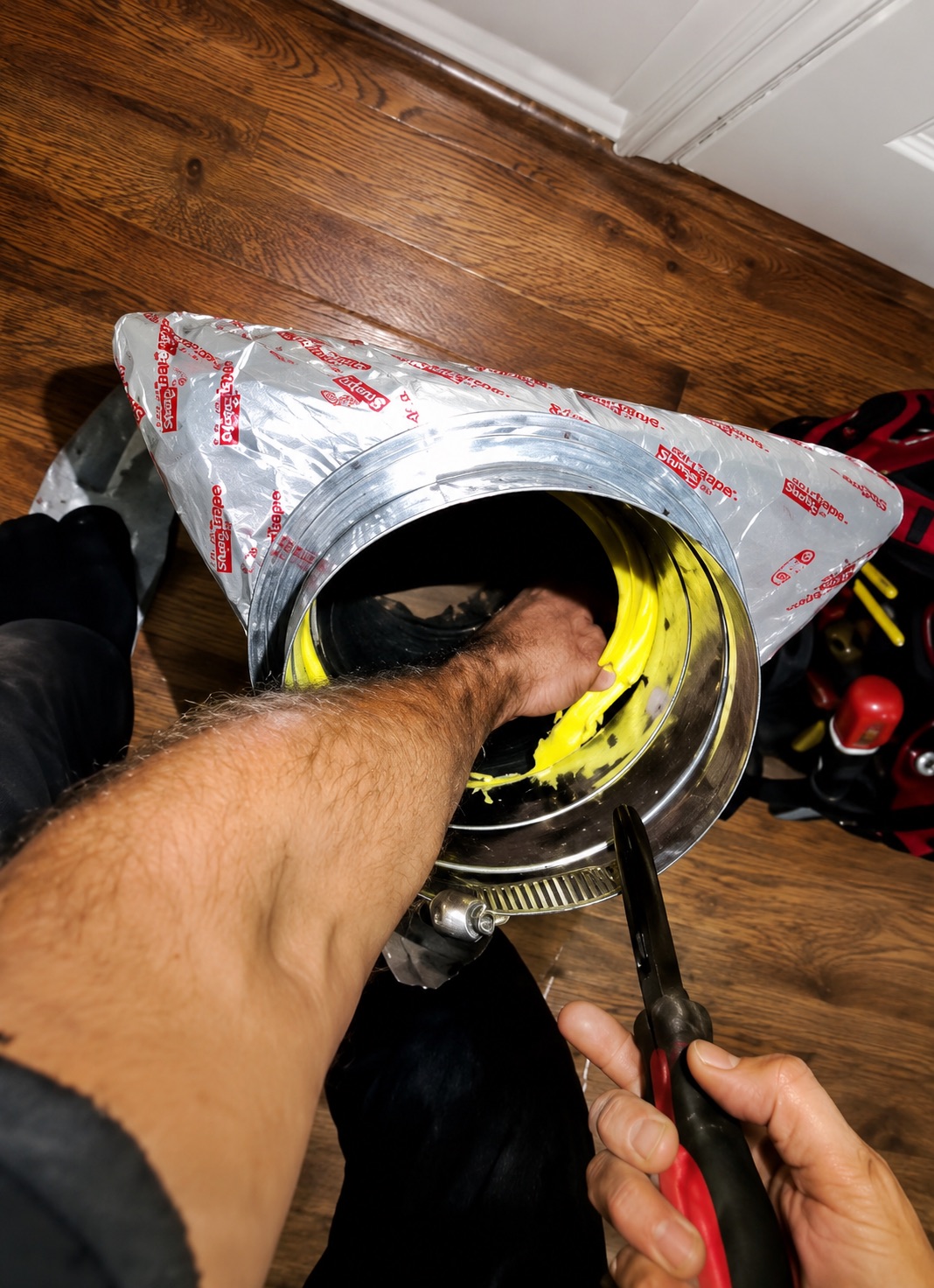

Step 3
Cut the duct opening.
After marking the layout, the triangular branch transition was modified so it could sit properly into the existing duct run. The round opening on the front is where the new flex duct connects to feed conditioned air into the added room.
Step 4
Test fit the transition.
Before final installation, the transition was positioned into place to confirm the cuts and alignment matched correctly. A proper test fit helps reduce gaps, prevent airflow leaks, simplify final sealing, and improve long-term reliability.

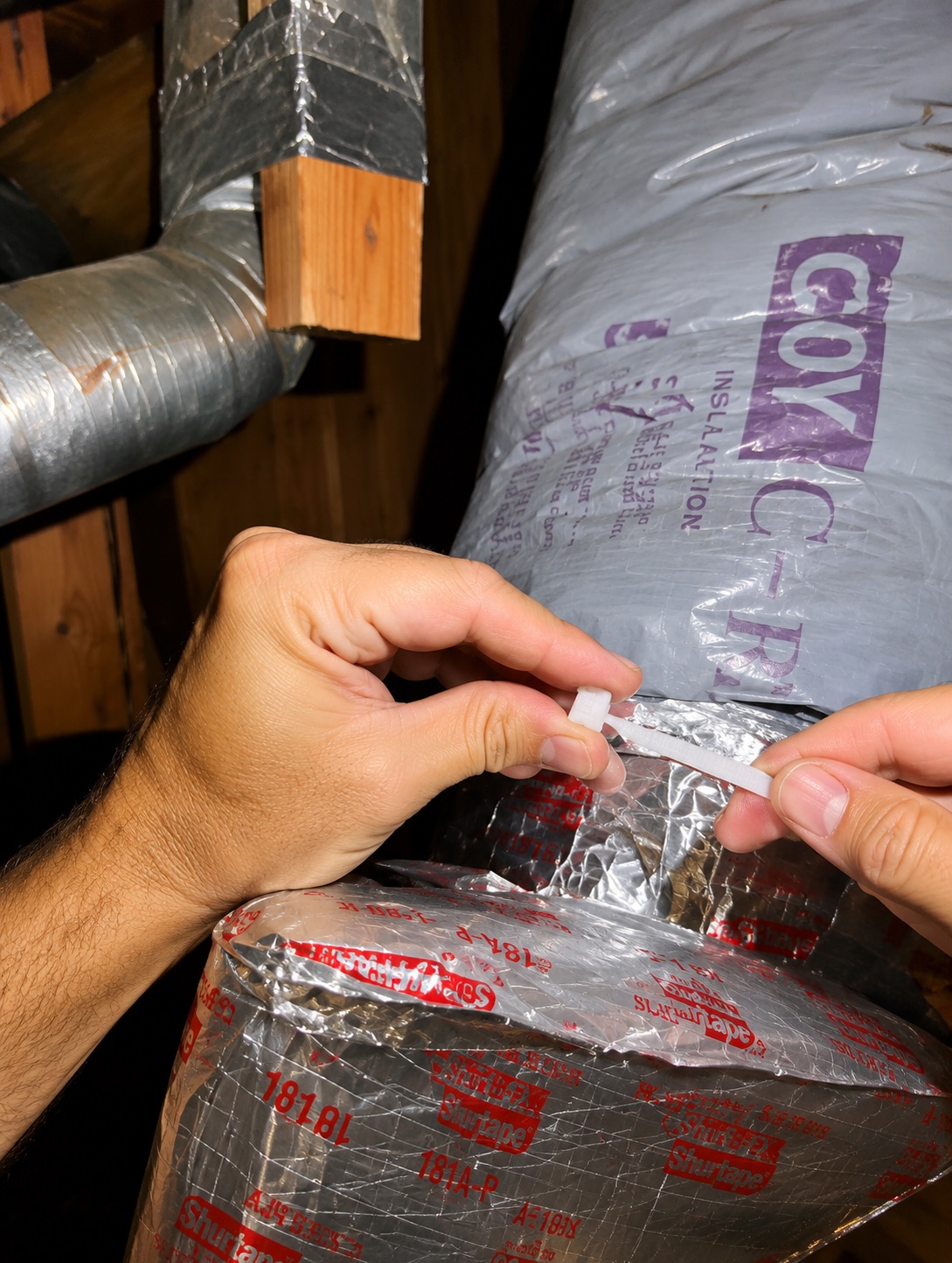

Step 5
Secure and seal the connection.
Once the transition was fitted correctly, the connection was secured and prepared for sealing. Spray glue, foil tape, and proper fastening methods help keep the connection sealed and reduce conditioned air loss.

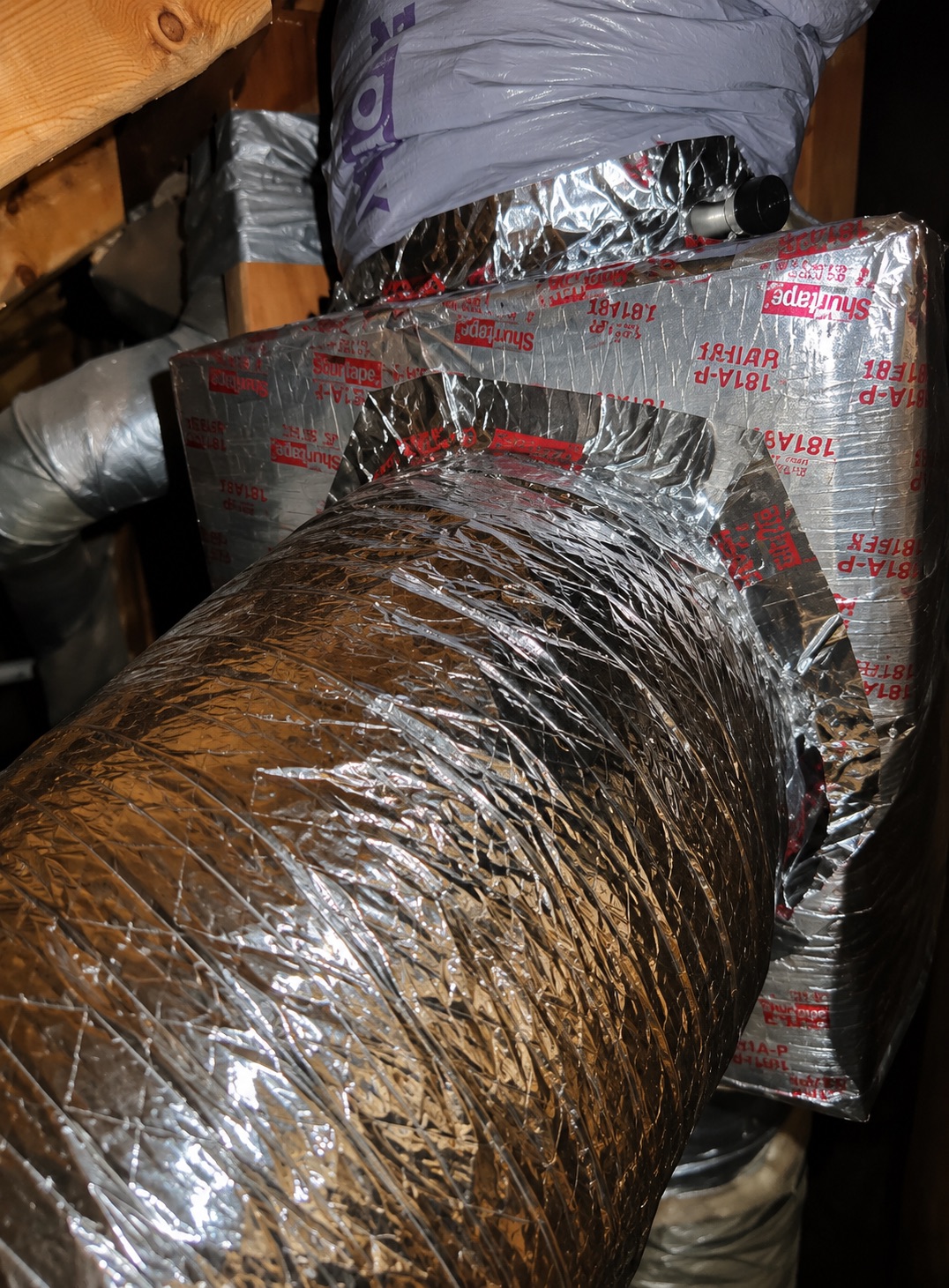

Final result
The added room now receives conditioned airflow.
Using a triangular branch transition allowed the system to improve airflow, save attic space, avoid major reconstruction, and keep the installation cleaner and more efficient.
Full video breakdown
Watch the walkthrough.
See the installation process from start to finish on YouTube.
Houston HVAC note
Duct changes affect airflow balance.
Adding a supply connection can help a hot room, but the duct size, system capacity, static pressure, and sealing all matter. The connection needs to be planned, fitted, secured, and sealed correctly.
